血压模组

BP Module

提供独立血压测量模组,包含完整硬件电路和软件驱动。通过标准化UART串口与客户主机通信,支持即插即用快速集成。适用于需要嵌入血压功能的智能健康设备、多功能健康监测仪、公共自助体检机等场景。客户无需了解血压算法细节,大幅降低开发门槛和周期。

Standalone BP measurement module with complete hardware and software driver. Standardized UART serial communication with host for plug-and-play integration. Ideal for smart health devices, multi-function monitors, and public self-service kiosks requiring embedded BP functionality. No algorithm knowledge required — significantly lowers development complexity and timeline.

模组方案 Module
血压模组

方案形态Module Variants

标准UART版
Standard UART

标准串口通信,TTL 3.3V电平,通用接口

Standard UART, TTL 3.3V level, universal interface

低功耗版
Low Power

待机≤50μA,适合电池供电的便携设备

Standby ≤50μA, ideal for battery-powered portable devices

小型化版
Miniature

紧凑PCBA尺寸,适配空间受限的产品形态

Compact PCBA size for space-constrained product designs

定制版
Custom

按客户需求定制接口、外形和功能

Customized interface, form factor and functions per client requirements

技术规格Technical Specifications

测量性能

Measurement

方法Method示波法Oscillometric
压力范围Range0-295 mmHg
精度Accuracy±3 mmHg
脉率范围Pulse40-199 bpm (±5%)
测量时间Time平均30秒~30s average

电气参数

Electrical

工作电压Voltage3.3V - 5V DC
工作电流Current≤200mA (泵工作)≤200mA (pump on)
待机电流Standby≤50μA
通信接口InterfaceUART (TTL 3.3V)
波特率Baudrate38400 bps (默认)38400 bps (default)

物理特性

Physical

尺寸Size可定制Customizable
接口ConnectorVCC/GND/TX/RX + 泵/阀控制
工作温度Temp5°C - 40°C
交付形式DeliveryPCBA + 软件PCBA + SW

方案亮点Solution Highlights

即插即用

Plug & Play

标准UART指令控制,提供完整通信协议,数小时即可完成集成

降低开发门槛

Low Barrier

无需掌握复杂血压算法,专注于产品形态设计

快速上市

Fast Time-to-market

成熟模组方案,直接导入产品,1-2周即可完成产品集成

尺寸定制

Size Custom

PCBA尺寸可按客户结构需求调整,适配多种产品形态

超低功耗

Low Power

待机电流≤50μA,适合电池供电场景

稳定可靠

Reliable

已量产出货数万套,经过充分验证

方案参考设计Solution Reference Design

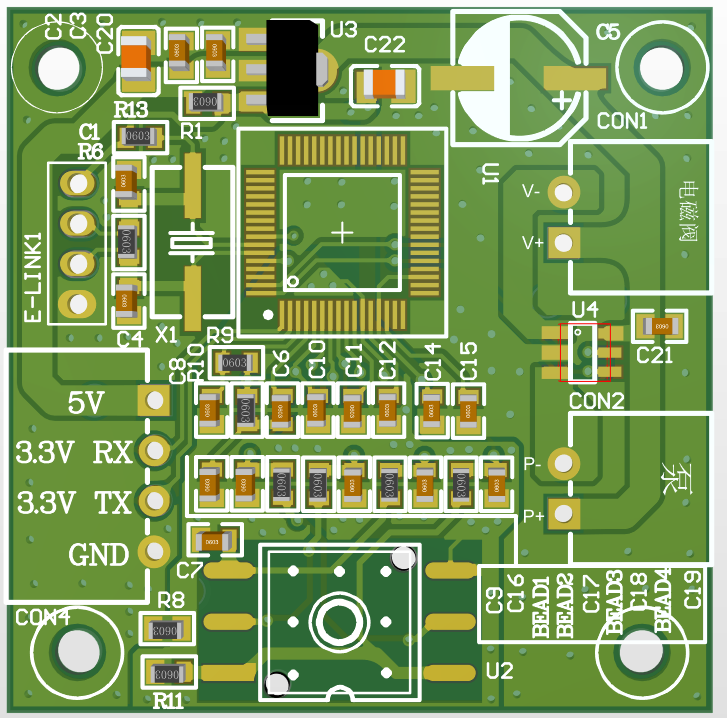

血压模组PCBA
血压模组 — PCBABP Module — PCBA
