提供电化学试纸法血糖检测完整方案。采用高精度电化学传感器前端，微量采血（≤1.5μL）快速出值。支持大屏幕LCD显示、多组记忆存储、餐前/餐后标记等功能。操作简单，适合家庭自测和基层医疗场景。
Complete electrochemical strip-based blood glucose monitoring solution. High-precision electrochemical sensor front-end with micro blood sampling (≤1.5μL) and fast results. Large LCD display, multi-record memory, pre/post-meal markers. Simple operation for home self-testing and primary care use.
LCD大屏显示，按键操作，经济实用
Large LCD display, button operation, cost-effective
语音播报测量结果，适合视力不佳人群
Voice broadcast results, ideal for visually impaired users
蓝牙数据同步APP，长期血糖趋势管理
BLE data sync to APP for long-term trend management
酶试纸技术，抗干扰能力强，结果稳定
Enzyme strip technology, strong anti-interference, stable results
| 检测方法 | Method | 电化学试纸法 | Electrochemical Strip |
| 测量范围 | Range | 1.1-33.3 mmol/L (20-600 mg/dL) | |
| 精度 | Accuracy | ±15% (≤5.5mmol/L) / ±15% (>5.5mmol/L) | ±15% (≤5.5) / ±15% (>5.5) |
| 需血量 | Blood Volume | ≤1.5 μL | |
| 测量时间 | Test Time | ≤5秒 | ≤5 sec |
| 主控 | MCU | 国产32位低功耗MCU | Domestic 32-bit LP MCU |
| 传感器 | Sensor | 电化学前端AFE | Electrochemical AFE |
| 显示 | Display | LCD 大屏 (段码/点阵) | LCD Large (segment/dot matrix) |
| 通信 | Comm | UART / BLE 5.0 (选配) | |
| 电源 | Power | DC 3V (纽扣电池/AAA) | DC 3V (Coin/AAA battery) |
| 记忆存储 | Memory | 支持500组测量记录 | 500 records |
| 餐前/餐后标记 | Pre/Post Meal | ✓ | |
| 7/14/30天均值 | 7/14/30d Avg | ✓ | |
| 自动关机 | Auto-off | ✓ (2分钟无操作) | |
| 温度补偿 | Temp Compensation | ✓ (10°C-40°C) |
| 试纸技术 | Technology | GDH-FAD (葡萄糖脱氢酶) | |
| 血样类型 | Sample | 指尖毛细血管全血 | Fingertip capillary whole blood |
| 红细胞压积 | HCT | 30%-55% | |
| 操作温度 | Temp | 10°C - 40°C | |
| 操作湿度 | Humidity | 10%-90% RH |
插入试纸即开机，5秒出值，操作便捷高效
Strip insertion auto-starts, 5-second results for efficient testing
仅需1.5μL指尖血，减轻患者采血痛苦
Only 1.5μL fingertip blood needed, minimizing patient discomfort
大字体LCD屏，老年人友好设计，结果一目了然
Large font LCD display, elderly-friendly design with clear readings
500组记忆存储 + 平均值计算，方便长期血糖追踪
500 records + average calculation for long-term glucose tracking
葡萄糖脱氢酶试纸，不受血氧干扰，结果更稳定
GDH-FAD strip technology, unaffected by blood oxygen, more stable results
纽扣电池供电，优化功耗设计，支持数千次测试
Coin cell powered with optimized consumption, supports thousands of tests
糖尿病患者的日常血糖监测管理
Daily blood glucose monitoring for diabetic patients
基层医疗机构的血糖筛查和随访管理
Blood glucose screening and follow-up in primary care
蓝牙版本配合APP实现云端数据管理和医生远程随访
BLE version with APP for cloud data management and remote doctor follow-up
体检中心的空腹血糖快速检测
Fasting blood glucose rapid testing at health checkup centers
养老院老人的日常血糖监测，大屏设计便于操作
Daily monitoring for nursing home residents with easy-to-use large display
OTC渠道销售的家用血糖仪产品方案
OTC pharmacy retail home glucose meter product solution

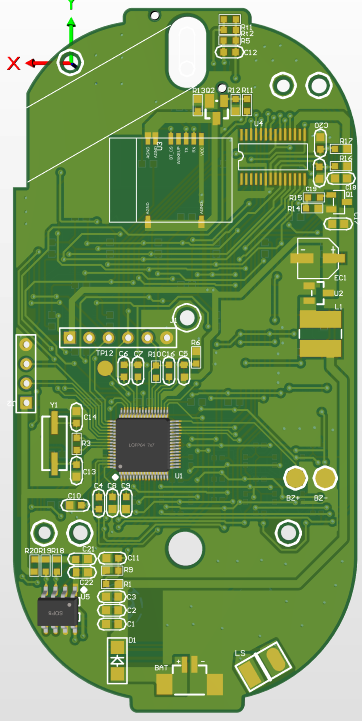

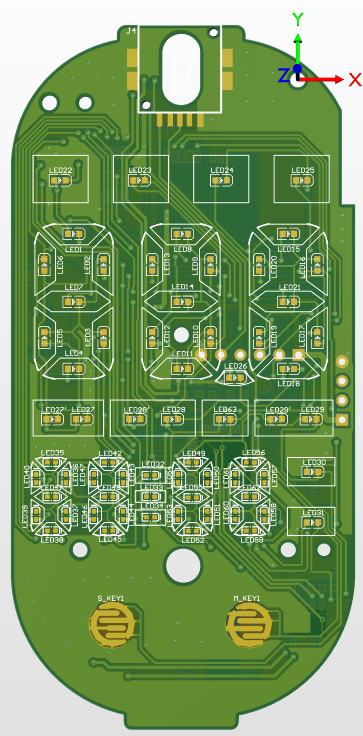

实际PCBA设计参考，展示方案硬件能力 Actual PCBA design reference demonstrating solution hardware capabilities
